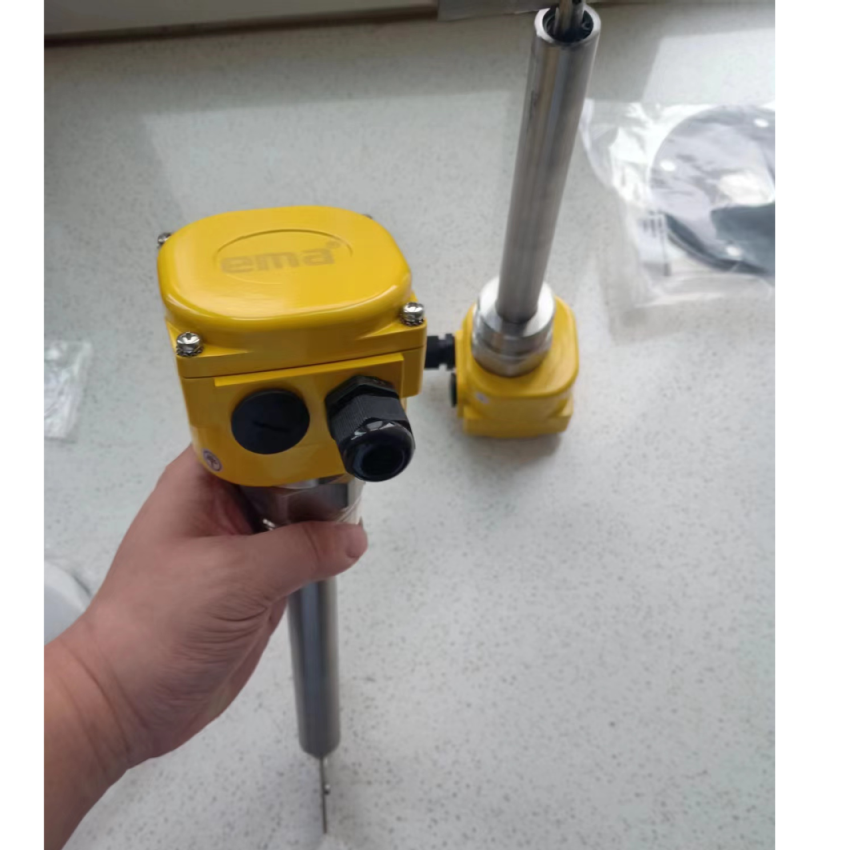

SRP50/SRT50伊玛EMA轴保护型阻旋开关
伊玛SRP50 SRT50是轴封加长的，更好的保护旋转杆，油封也会做的更好。主要型号有;
SRP50CC02004,SRT50CC02004 ,SRP50CD02004,SRT50CD02004
SRP50CA02004,SRT50CA02004 ,SRP50CB02004,SRT50BD02004
SRP50CC04004,SRT50CC04004 ,SRP50CD04004,SRT50CD04004
SRP50CA04004,SRT50CA04004 ,SRP50CB04004,SRT50BD04004
SRP50CC06004,SRT50CC06004 ,SRP50CD06004,SRT50CD06004
SRP50CA06004,SRT50CA06004 ,SRP50CB06004,SRT50BD06004
SRP50CC08004,SRT50CC08004 ,SRP50CD08004,SRT50CD08004
SRP50CA08004,SRT50CA08004 ,SRP50CB08004,SRT50BD08004
SRP50CC10004,SRT50CC10004 ,SRP50CD10004,SRT50CD10004
SRP50CA10004,SRT50CA10004 ,SRP50CB10004,SRT50BD10004
SRP50CC12004,SRT50CC12004 ,SRP50CD12004,SRT50CD12004
SRP50CA12004,SRT50CA12004 ,SRP50CB12004,SRT50BD12004
EMA SRP50/SPT50阻旋开关的安装
阻旋式料位开关通常有以下五种固定形式:
1.普通安装:轴套螺纹直接安装在容器壁相同规格螺纹上，旋紧即可。
2.螺母安装:在容器壁上开孔(50mm<N<78mm,N为孔径)，内壁再通过六角螺母锁紧，如下图所示。
3.法兰安装:在容器壁上开孔(78mm<N<115mm，N为孔径)，再通过螺钉把法兰固定在容器壁上即可。
4.镶件安装:在容器壁上开孔(N=58mm,N为孔径)，再把轴套螺纹连接到镶件相同规格螺纹上，镶件再焊接到容器壁上即可。
5.转换头安装:螺纹连接到转换头，转换头再连接到容器壁上(转换头螺纹规格可以根据用户需求订制)。
伊玛SRP50 SRT50阻旋开关316材质的型号为：
SRP50CC02006,SRT50CC02006 ,SRP50CD02006,SRT50CD02006
SRP50CA02006,SRT50CA02006 ,SRP50CB02006,SRT50BD02006
SRP50CC04006,SRT50CC04006 ,SRP50CD04006,SRT50CD04006
SRP50CA04006,SRT50CA04006 ,SRP50CB04006,SRT50BD04006
SRP50CC06006,SRT50CC06006 ,SRP50CD06006,SRT50CD06006
SRP50CA06006,SRT50CA06006 ,SRP50CB06006,SRT50BD06006
SRP50CC08006,SRT50CC08006 ,SRP50CD08006,SRT50CD08006
SRP50CA08006,SRT50CA08006 ,SRP50CB08006,SRT50BD08006
SRP50CC10006,SRT50CC10006 ,SRP50CD10006,SRT50CD10006
SRP50CA10006,SRT50CA10006 ,SRP50CB10006,SRT50BD10006
SRP50CC12006,SRT50CC12006 ,SRP50CD12006,SRT50CD12006
SRP50CA12006,SRT50CA12006 ,SRP50CB12006,SRT50BD12006
伊玛EMA SRP50阻旋开关注意事项:
1.续接型大于1200mm，请选用钢索电缆线，适用于垂直安装
2.钢索型可适用于:标准续接型、高温续接型、超高温续接型
3.超高温请选用金属壳体
4.确认连接轴/联轴器/叶片的材质选择一致
5.确定电压24VAC，110-120VAC或220VAC
6.注意原料比重
7.确认叶片尺寸是否可插入法兰片入口或桶槽壁开孔
8.总长度变化在ェ5mm以内为正常范围
9.续接型的订货内含主体和联轴器，请再选购叶片、连接杆(选配)和配件(选配)
